“Help” was the desperate cry of a MetrixLT user after the close of the workday.
“I need to multiply two hourly interval data series in MetrixLT!” While the user understood the action can be accomplished in MetrixND or Excel, he didn’t want to leave the MetrixLT environment. After all, who wants to export data to a separate environment, perform a simple calculation, then re-import data back to MetrixLT?
MetrixLT was designed to perform complex functions such as scaling interval data to monthly data. For instance, an hourly profile (interval data) can easily be scaled to a monthly energy forecast (monthly data) in the Batch Transformation object. But, MetrixLT was not designed to address this user’s urgent need.
With flashbacks to the Apollo 13 movie scene of NASA engineers fitting a square air filter into a round hole, we went to work searching for a way to make MetrixLT perform a task that was not originally intended.
Step 1: Import Interval Data

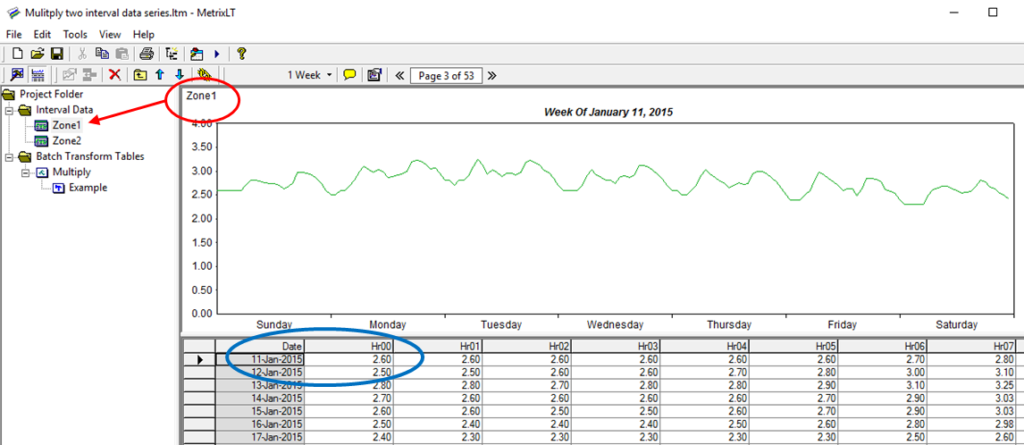

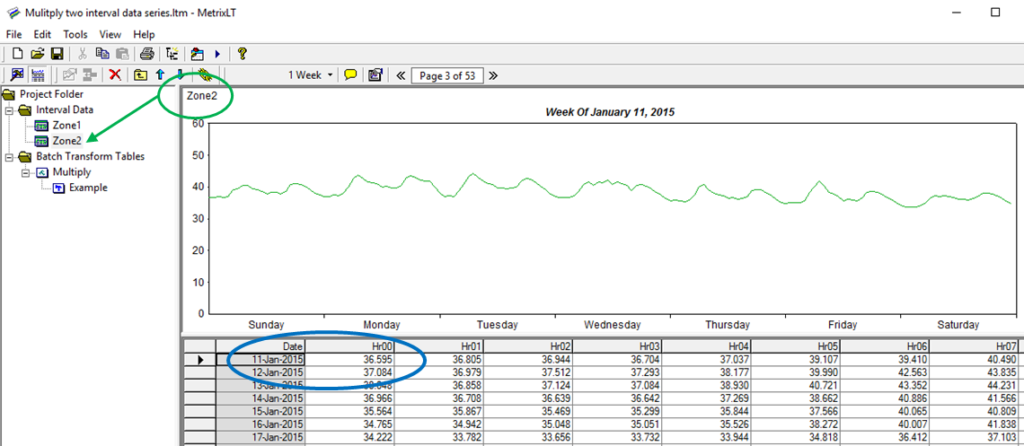

Use the Import Interval Data feature to create two hourly Data Tables in MetrixLT. In the example below, data for Zone1 and Zone2 are imported into MetrixLT. I’ve highlighted the January 11, 2015 values to check our work.
Step 2: Configure A Batch Transformation

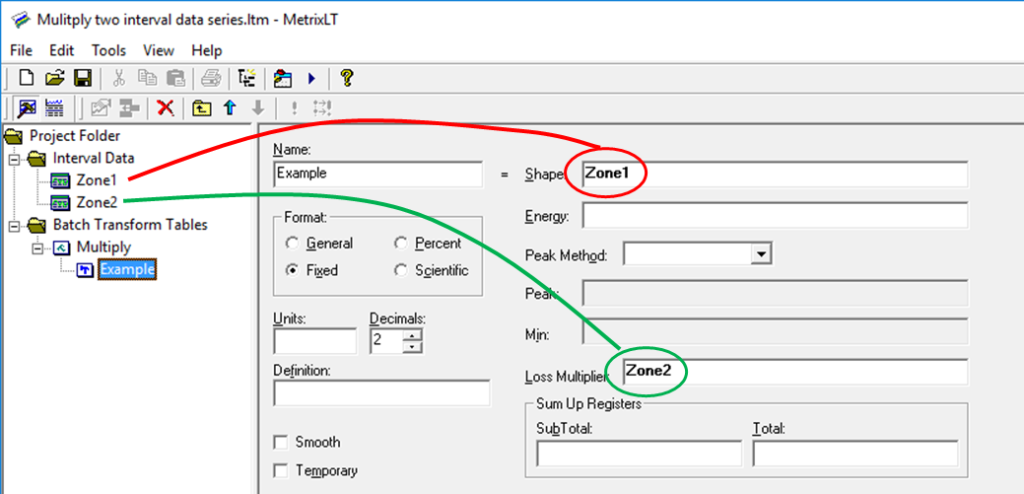

Create a Batch Transformation and configure the Shape and Loss Multiplier boxes with the Zone1 and Zone2 interval data. In the example, Zone1 interval data is placed in the Shape box and Zone2 interval data is placed in the Loss Multiplier box.
By leaving the Energy field empty, the Batch Transformation will not perform scaling resulting in Shape field values multiplying with the Loss Multiplier field values.
Step 3: Calculate the Result
Select the “!” to calculate the Batch Transformation result and you are finished.

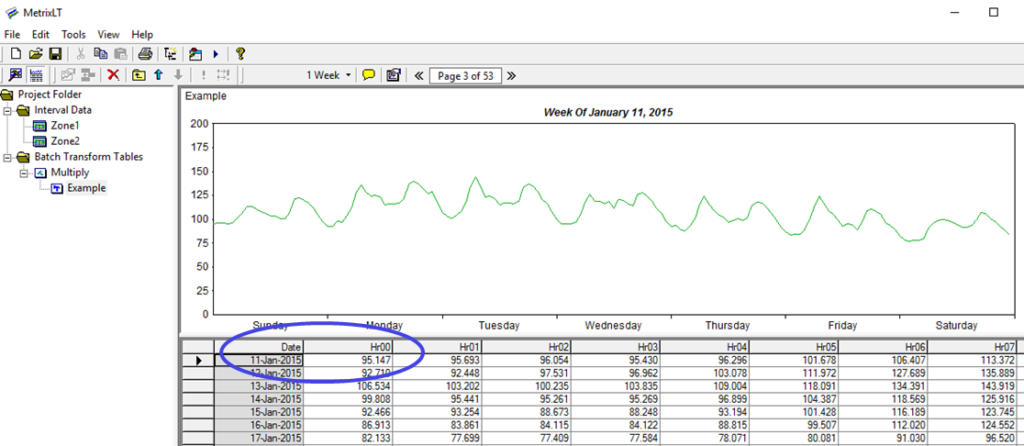

I’ve highlighted the validation for January 11, 2015.
Zone 1 = 2.60
Zone 2 = 36.595
Product = (Zone 1) x (Zone 2) = 95.147
Zone 1 values are now multiplied by Zone 2 values and stored in a Batch Transformation variable.
And that is how we fit a square air filter into a round hole.
